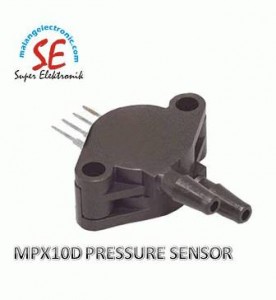

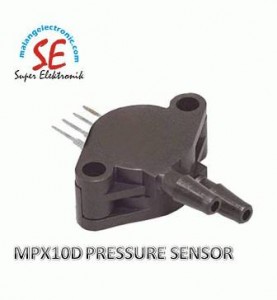

Jual Sensor Pressure MPX10D | Harga Sensor MPX10D Pressure Sensor Harga Murah
The MPX10 series silicon piezoresistive pressure sensors provide a very
accurate and linear voltage output, directly proportional to the applied
pressure. These standard, low cost, uncompensated sensors permit
manufacturers to design and add their own external temperature
compensation and signal conditioning networks. Compensation techniques
are simplified because of the predictability of Freescale’s single element
strain gauge design.
- SENSOR, DIFF PRESS 1.45 PSI, 344C-4
- Pressure Type: Differential
- Operating Pressure Min: 0kPa
- Operating Pressure Max: 10kPa
- Supply Voltage Min: 3V
- Supply Voltage Max: 6V
- Sensor Case Style: 344C-01
- No. of Pins: 4
- Connection Size: 4.928mm
- Sensitivity, V/P: 3.5mV/kPa
- Supply Current: 6mA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- MSL: –
- SVHC: No SVHC (20-Jun-2013)
- Base Number: 10
- Operating Pressure Range: 0Pa to 10kPa
- Operating Temperature Range: -40°C to +125°C
- Port Style: Dual Port
- Supply Voltage Range: 6V
- Termination Type: Through Hole
Harga : Rp 250.000,-
Order ; 085646814774
