Jual RFID 13.56Mhz Murah | RFID Mifare RC522 | RFID MF-522 Harga Murah
jual-rfid-13.56-mhz-murah-rfid-mifare-rc522-harga-murah
Jual RFID 13.56Mhz Murah | RFID Mifare RC522 | RFID MF-522 Harga Murah
Description:
MF RC522 is a highly integrated transmission module for contactless communication at 13.56 MHz.
This transmission module utilises an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.
Specification:
- Operation Current 13~26mA/DC3.3V
- Idle Current 10~13mA/DC3.3V
- Sleep Current <80μA
- Peak Current <30mA
- Operation Frequency 13.56MHz Read Range 0~60mm（mifare1）
- Interface SPI Data Transition Rate Up to 10Mbit/s
- Support Cards mifare1 S50 mifare1 S70 mifare UltraLight mifare Pro mifare Design
- Dimension 40mm×60mm
- Operation Temperature -20~80℃
- Relative Humidity %5~%95 Notes
- Card compatiability : mifare1 S50、mifare1 S70、mifare UltraLight、mifare Pro、mifare Desfire ;
The MFRC522 transmission modules support the following operating mode:
Reader/writer mode supporting ISO 14443A / MIFARER
The RFID Module with the Philips MF RC522 chip is used for RFID products development.
The Module supply voltage is 3.3V,users can connect the module to any CPU board with the SPI interface.
Harga : Rp. 250.000,-
Order : 085646814774

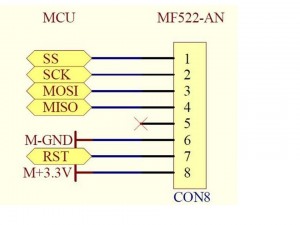

datasheet-rfid-mf-522-
