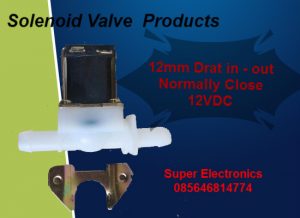

Solenoid Valve Drat 12mm (Kran Elektrik 12mm Murah)
Solenoid Valve Drat 12mm (Kran Elektrik 12mm Murah)
Solenoid valve ini mempunyai sistem kerja normally close yaitu valve akan tertutup apabila tidak ada tegangan dan terbuka jika diberi tegangan 12v. Solenoid valve ini mempunyai drat berukuran 12mm sehingga sangat cocok untuk aliran air kecil. Solenoid vavle ini sangat coock untuk pengisian air, penyiram tanaman dll.
First, the product is stable, durable, safe, reliable, high sensitivity, quality assurance, beautiful appearance.
Second, the main technical indicators:
1, the use of the environment is not an altitude over 2500 meters; ~ 106KPa atmospheric pressure 86;
2, ambient temperature + 1 C ~ + 45 C; water temperature is 0 C ~ + 60 C; storage and transport temperature – 30 ~ 60C;
3, protection class IP00; relative humidity <=95%;
4, operating parameters:
rated working voltage: DC12V exchange and other (production line detection voltage to fall to 15%); Power rating: 4W, 5W, etc;
Rated operating voltage (V) : DC12V
power (W) :5W
Rated operating current (A) : 0.42
DC resistance (20 C) (Ohm) : 27.7 +- 0.6
Operating Pressure: 0.02 ~ 0.8MPa; can withstand the static pressure of not less than 1.6Mpa;
working life: imported stainless steel springs and high-quality materials, to work less than 20 million times (100 times a day by Job count, life is more than five years);
HARGA : Rp. 140.000,-
ORDER : 085646814774
