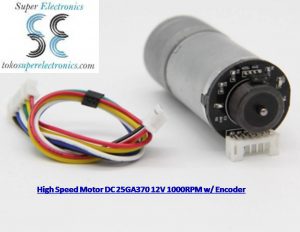

Motor Dc 1000rpm 12V Plus Encoder Otomatis (Jual Motor Dc Encoder)

jual-motor-dc-dengan-encoder-12v-1000rpm-murah

Motor Dc 1000rpm 12V Plus Encoder Otomatis (Jual Motor Dc Encoder)

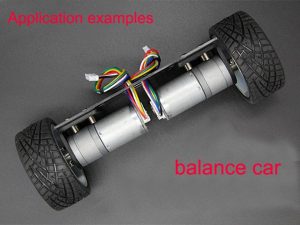

Motor Dc 1000rpm ini sudah dilengkapi dengan encoder sehingga kita dapat mengatur dan memonitor gerakan motor, dengan kecepatan 1000Rpm motor ini akan sangat membantu untuk aneka proyek seperti : robotic, controller, motor lengan robot, pembuka gerbang dll.

Connection:
Black Motor Power + (swap can control motor reversing)
Red Coding Power + (positive and negative level not take the wrong 3.3-5V )
White feedback signal (motor revolution 11 signals)
Yellow feedback signal (motor revolution 11 signals)
Orange Coding Power – (positive and negative level not take the wrong 3.3-5V )
Green Motor Power – (swap can control motor reversing)

[Outer diameter] 25mm length dimension based on different parameters of different length
[Long] axis length 8mm 12mm D
[] Shaft diameter 4mm D-shaped shaft
[Weight] about 100g different than the different parameters of different weight reduction

Perbandingan Gear : 1:4.4
Speed : 1000RPM
Power Consumption Standard : <=0.45A
Torque : 0•35kg•cm
Power Consumption Max Load : <=1.3A

Harga : Rp. 200.000,-
Order : 085646814774
