Jual Regulator DC / Modul converter DC to DC | Step Down Harga Murah
jual-step-down-lm2956-modul-converter-dc-to-dc-plus-lcd-karakter
Jual Regulator DC / Modue Converter DC to DC | Step Down Harga Murah

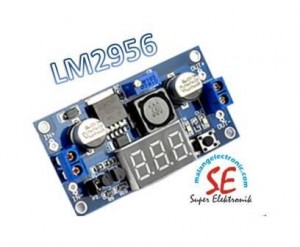

Step Down Dc to Dc ini dilengkapi dengan display tegangan. Regulator DC atau modu lconverter dc to dc ini memakai komponen LM2956.
Spesifikasi :
Features:
A key switch input and output voltage
green light: measuring the output voltage
red light: measuring the input voltage
with terminal and retain the wire bonding wiring point
If remove the P3 jumper cap, the voltmeter shutdown
Lower Power Consumption
Specific:
- Module Model:LM2596 Buck Converter + Voltmeter
- Cutting Size: 66.04mm x 35.05mm
- Input Voltage: DC 4.0~40V
- Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
- Output Current: 2A(normal and stable), 3A Max.
- Ripple Frequency: About 150Khz
- Ripple Peak: About 100mV
- Display Color: Red
- Voltage Meter Error: ± 0.1V
- Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
- IN+: Input Postive
- IN-: Input Negative
- Out+: Output Postive
- Out-: Ouput Negative
Harga : 125.000,-
Order : 085646814774
